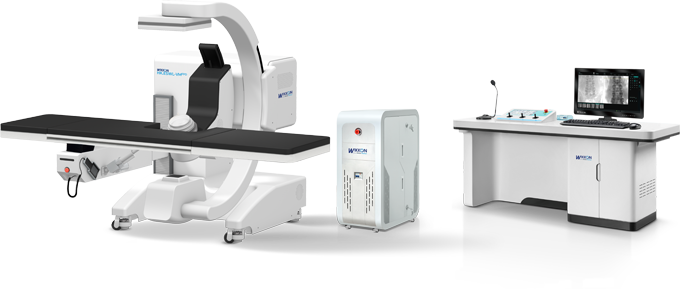

Control Console
Control console with touchscreen and joystick for parameters setting accuracy and ease of operation.
Flat Panel Detector
X-ray imaging for stonelocalization

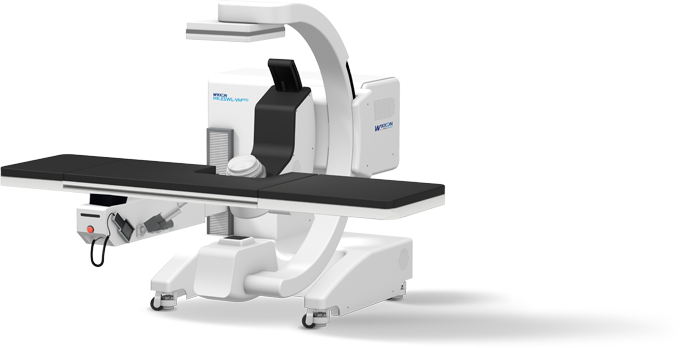

Motorized C-arm enables +/- 45° rotation and 10° sliding movement for flexible and effortless localization.
Shock Wave Therapy Head Arm
The shock wave therapy head arm offers ±180° rotation and ±30° sliding angle, for over- and under- table.
This design provides an optimal access window for stone targeting.
Electromagnetic Shock Wave Source
Note: 150 mm focal distance selection/option available upon request.
Ultrasound-guided Localization
The ultrasound probe is mounted on an electrically driven articulating arm that can be adjusted to multiple angles for optimal visualization and precise localization of the targeted stone, all controlled via a joystick.
* Ultrasound equipment is available as an optional accessory.

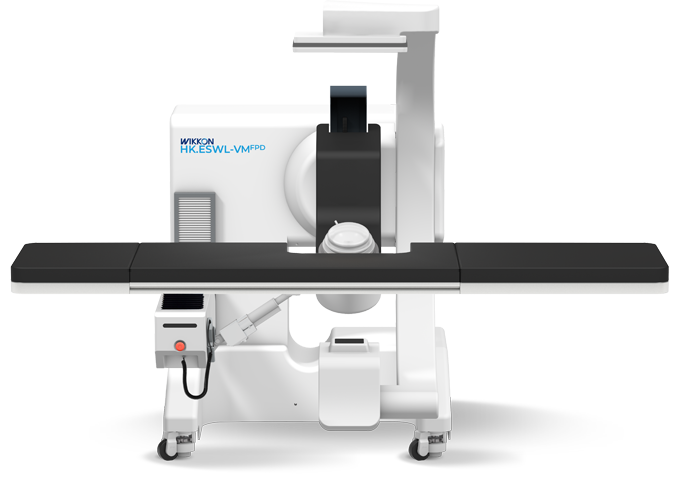

Motorized Patient Table
Fully motorized patient table offering six-directional movement and 15° tilt adjustment, ideal for pre-diagnostic and ESWL applications. The integrated design supports precise positioning and workflow efficiency.
Handheld Remote Control
